PARKING CAMERA BC UNI-O5
€85.00
FRONT OR REAR

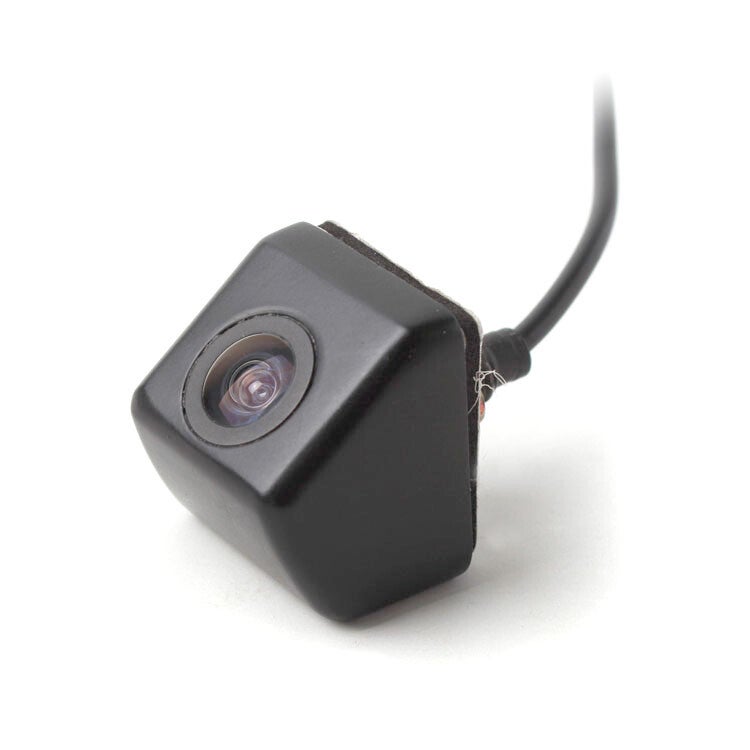

Universal parking camera, for exterior, angle of view 140°, metal body, screw-on mounting, possibility of installation front aim, back aim, on a vertical or on horizontal surface, with the possibility of switching the guide lines on.
Technical parameters:
- 1G3P 1/4 "Sensor
- effective pixels: 648x488
- The number of TV lines: 480
- Viewing angle: 150°
- poer supply: 12V
- TV system: NTSC
- weather protection: IP67
- Minimum illumination: Less than 1 Lux
- Electronic shutter: 1/60 1/10000 sec
- signal cable length of 6 m ended with RCA connectors
- power cable length 1 m
Functions:
- WHITE LOOP - guide lines - displayed after cutting
- GREEN LOOP - image orientation - mirror image after cutting, for rearward installation as a parking camera
- BEIGE LOOP - image orientation - upside down after cutting, installation on vertical surface
If the loops are intact, the camera sends the image:
- direct - forward installation
- upside up - installation on a horizontal surface (from bottom)
- without guide lines
